Kaolin Recovery Utilizing G-Cell Flotation



The Efficient Recovery of Kaolin From a Hydrocyclone Plant

Middlings Stream Utilizing IMHOFLOT G-CELL Pneumatic Floatation

Michael Battersby, Maelgwyn Mineral Sevices, Cardiff, UK

Rainer Imhof, Maelgwyn Mineral Services, Dorsten, Germany

Michael Fletcher, Maelgwyn Mineral Srevices, Cardiff, UK

Franz Puder, Gebr.Dorfner GmbH & Co, Hirschau, Germany

----------------------------

Prepared and Collected by Atef Helal from different Sources . The present subject was first puplished at the SAIMM - (South African Institute of Mining and Metallurgy)- Conference, Flotaton Cell Technology in the 21st Century, 20 June 2007.

-------------

Historical note (collected by Eng. Atef Helal) : The tehnology originates from pneumatic flotation developments in the 1970s in Germany by Prof.S imonis (Technical University of Berlin) and Prof. Bahr (Tehnical University of Clausthal). Since then Dr. Rainer Imhof has been known widely for his contributions to design at Ekof, KHD. Allmineral, and most recently Maelgwyn Mineral Services, where he is Technical Director (Imhof, 1998). Ingenieria de Minerals S.A. has been involved with the technology development by Dr. Imhof for more than 10 years and is broadly experienced with flotation, from Wits University and Mintek in outh Africa (Sanchez, 1990).

Generl View of Imhoflot G-Cell (collected by A.H.) : The term pneumatic flotation is generally associated with flotation where the aeration of the pulp is conducted outside the flotation cell. This is the main differentiating factor between pneumatic flotation and conventional tank flotation. The energy required by conventional cells to keep particles in suspension and generate bubbles is now focused solely on the production of very fine bubbles in the Imhoflot system, and the suspension of particles is catered for in the surplus energy of the system. The external aeration is usually achieved either by utilizing a simple venturi system in a pipe with downcomers or by using specialized fine bubble generation technology. This fine bubble generation technology is a core feature of the Imhoflot system.

The design objectives for Imhoflot pneumatic flotation are to separate and optimize the independent process steps that make up froth flotation: aeration, bubble-particle contact and froth separation. The aerator is self-aspirating and uses a high shear ceramic multi-jet venturi system operating at around 2.5 bar (250 kPa) back pressure. Bubble sizes generated start with ultra-fine bubbles at around 5 μm–10 μm. Bubbles in the 2 mm to 3 mm size range can also be found owing to the subsequent coalescence (growing together) of bubbles that takes place. The high shear aerator reactor is designed to maximize the attachment of bubbles to all hydrophobic particles. Therefore the aerator can be seen to tend to the generation of bubbles as well as assisting the bubble-particle contact required for successful flotation. In the original design of the Imhoflot cell, the V-Cell, the aerated pulp was introduced upwards into the cell by means of a ring distributor system and nozzles.

-------------

Abstract

The traditional processing of kaolin is achieved by dispersion of mined ore and classification by multistage hydrocyclon plant. Inefficiencies inherent to cyclons produce a middlings product that is commonly disposed of back into the quarry. The Imhoflot G-Cell is an innovative pneumatic flotation process that can be used to recover this previously wasted middlings stream. The technology uses centrifugal forces to assist in the separation of the froth phase from the tailings and consequentially reduce the residence time in the separating vessel. This paper describes the testing, design and installation of a pneumatic flotation plant for kaolin recovery at the Dorfner kaolin plant in Germany.

Introduction

Kaolin's (china clay) major constituent is the mineral kaolinite, which is a hydrated aluminium silicate, Al2Si2O5(OH)4. Kaolin is formed by the decomposition of the mineral feldspar by water and heat and can commonly be found in two types of deposits, primary and secondary. Primary deposits, which are most commonly found in Europe, consist of the clay occurring in-situ in the kaolinized rock. Secondary deposits, found in the Americas, are created when water has transported the clay from primary deposits and laid it down in new beds. This natural washing process leaves secondary deposits comparatively pure.

 Kaolin particles are predominantly below 25μm and are flat shaped particles. This mean that industrial separation is commonly achieved by the dispersion of the mined ore and classification using multistage hydrocyclones. The kaolin reports to the overflow which is then reprocessed in other smaller cyclones. Due to inefficiencies associated with hydrocycloning, most plants are not able to produce clean quartz feldspar and kaolinite products and after the 4th or 5th hydrocyclone stage, the underflow cannot be separated further, resulting in the production of a middlings stream that either sold cheaply to the cement industry or used as back fill in the quarry. This middlings stream can be treated via flotation, but due to environmental impact of using cationic collectors (amines) the flotation plant has to be operated in a closed water circuit.

The Dorfner mine is situated just outside the city of Hirschau (Oberpflaz) in south-eastern Germany, 70 km east of Nuremburg. The Dorfner company has been operating for over 100 years processing and refining minerals such as quartz, feldspar and kaolin from Hirschau-Schnaittenbach (HS) deposit. Kaolin from the HS deposit are charachterized by high concentrations of the rare elements, Barium (Ba), Strontium (Sr), Lead (Pb), Copper (Cu) and Phosphorous (P). The occurrence of these trace elements with the kaolin originates from the decomposed potassium feldspar of the kaolinised across. The usage of flotation as a beneficiation route at Dorfner also helps to enhance the rejection of these rare elemts, in particular the high lead contamination.

Development of the Imhflot G-Cell

Although all froth flotation is pneumatic i.e. with air, the term pneumatic flotation flotation is generally accepted to apply to froth flotation where aeration of the pulp takes place outside of the separating vessel, and thus differentiates it from conventional tank flotation. The external aeration is usually achieved by either utilising a simple venture system in a pipe with downcomers or by using a specialised fine bubble generation technology. This fine bubble generation technology is a core feature of the Imhoflot system.






The design objectives for Imhoflot pneumatic flotation (Figure 1 & 2) are to separate and optimize the independent process steps that make up froth flotation: aeration, bubble-particle contact and froth separation. The aerator is self-aspirating and uses a high shear ceramic multi-jet venturi system operating at around 2.5 bar (250 kPa) back pressure. Bubble sizes generated start with ultra-fine bubbles at around 5 μm–10 μm. Bubbles in the 2 mm to 3 mm size range can also be found owing to the subsequent coalescence (growing together) of bubbles that takes place. The high shear aerator reactor is designed to maximize the attachment of bubbles to all hydrophobic particles. Therefore the aerator can be seen to tend to the generation of bubbles as well as assisting the bubble-particle contact required for successful flotation. In the original design of the Imhoflot cell, the V-Cell, the aerated pulp was introduced upwards into the cell by means of a ring distributor system and nozzles.

Residence time in the cell was generally in the order of three to four minutes. Over the last few years MMS has developed the concept of using centrifugal forces to speed up the separation of concentrate and enhance the removal of the froth phase. This is achieved by introducing the aerated feed tangentially into the separating vessel, thus creating specific rotational speeds in the cell. The cell is not designed as a gravity separator, and the rotational speeds are not high enough to strip coarse particles from the froth. However, the centrifugal froth separation has now reduced the residence time in the cell to around 30 seconds, which results in a multi-fold increase in flotation unit capacity.


The mine uses a sophisticated hydrocyclone plant and has extensive knowledge of pneumatic flotation due to their exclusive use of the Bahr-Cell on kaolin flotation. The previous float plant was limited in its throughput as well as requiring a cleaning stage to produce final grade product. The use of amine reagents in combination with-ultra fine kaolin results in a very stable froth that causes significant handling and pumping problems in the cleaner stages. With the Dorfner mine looking to expand its production the current flotation plant could not successfully handle the additional flowrate and Maelgwyn Mineral Services (MMS) were approached to perform tests and trials for upgrading the flotation plant. With the planned expansion, the middlings product would make up 5-6t/hr, with an effective flotation plant it would have the ability to produce an additional 4t/hr of high value kaolin.

 The quality of kaolin is most commonly measured by the mass percentage loss on ignition (LOI) at 1050oC. The theoretical maximum LOI of pure kaolin is reported as 13.9%.



Figure 2 (a) details the forces acting on the particles in the slurry inside the G-Cell. The downward force (G) is the force exerted by gravity and can be calculated using Newton’s second law of motion, which states:



FG = m.a

FG = gravitational force

m = mass

a = Gravitational Acceleration



The acceleration of an object due to gravity is constant and equal to 9.8m/s2. For the purpose of this example, we can ignore the mass of the object because it will be variable for different size particles entering the separation vessel. We can therefore say that gravitational acceleration (FG) of 9.8m/s2 in a downward direction will be exerted on all particles entering the separating device. By using the cylindrical shape of the vessel, and injecting the slurry tangentially into it, it is possible to create a centrifugal force acting on the aerated pulp in the separating vessel. The following equation is a derivative of Newton’s second law and can be used to determine the centrifugal force experienced by a particle in the rotating pulp:



Fc = m . v2 r

Fc = centrifugal force

V = rotational velocity

r = radius



Therefore at a predetermined speed and radius (and ignoring the mass of the object, as before) it can be calculated that the centrifugal acceleration experienced by the object would be 9.8m/s2. This force will be exerted in an outward direction. The resultant force is shown in the diagram above (Figure. 2a).

FR is the resultant force that is experienced by a particle in the pulp. To calculate the resultant force, we use the Pythagoras theorem. For example, when the centrifugal acceleration is 9.8m/s2, the resultant force experienced by the slurry will be 13.86m/s2 at an angle of 45°. The resultant force on the particle in the slurry is greater than that of the gravitational force alone, as experienced in other flotation systems. This increased force in the system encourages hydrophilic particles to drop out of the system faster, and thus allows a much shorter residence time in the separating vessel. The additional force added to the particles aids in the reduction of the entrainment of hydrophilic particles into the froth. This results in higher selectivity’ and hence produces better grades in the froth. The resultant force on the pulp creates an angled pulp/froth interface. This is beneficial, as it allows the froth to essentially ‘flow’ over the interface towards the inner channel, thus aiding in the removal of froth from the system. This faster froth removal ensures that valuable particles are removed from the system before they can detach from bubbles and drop back into the pulp, to be lost to the tails. This, in combination with the generation of fine bubbles in the high shear aerator, results in better recoveries of valuable minerals in the finer size fractions. This increased performance in the flotation system enables the separating device to be smaller in size and more cost effective than standard flotation cells.



Dorfner Flotation plant Upgrade

Background

Primary kaolin is most commonly found in Europe whilst secondary clays are more commonly found in the Americas. Kaolin is extensively used in Europe in highly filled uncoated mechanical papers where it contributes to gloss and smoothness. Kaolin is also used in coating applications where good coverage of the surface is critical.

The normal industrial separation process of kaolinite production is achieved by the dispersion (slurry production) of the mined ore and classification by means of multi-stage hydrocyclone systems. Kaolinite particles are commonly found in the size range of only a few microns and therefore report to the hydrocyclone overflow. This overflow is then further classified in the next, smaller cyclone and so on. The hydrocyclone plant is not able clean quarz, clean feldspar and clean kaolinite products individually. This inefficiency leads to the production of a middlings stream which is either used in the cement industry or disposed of back into the quarry.

In certain kaolin treatment plants, the beneficiation process of kaolin is undertaken by the use of froth flotation. Amines are used as collectors, in a low pH environment, for effective flotation to take place. Dorfner has exclusively been using pneumatic flotation for many years, utilizing Bahr-Cell, the earliest development of pneumatic flotation, and were consequently comfortable with their use.

Dorfner Flotation Plant upgrade

Two of the restrictions of the existing  flotation Plant at Dorfner were its low throughput capacity and the need of a cleaning stage to produce a saleable grade of concentrate. The use of amines to float fine particles results in a very stable froth. This causes a significant problems with froth handling and pumping of the rougher concentrate to the cleaner flotation cells.

Dorfner planned to increase the flotation capacity by building a new flotation plant. Their intial studies indicated that an Imhoflot pneumatic flotation plant would offer considerable capital cost savings over a conventional tank cell plant. In addition it appeared that pneumatic flotation plant had the potential to produce a high grade concentrate without the need for further cleaning cells, a considerable cost advantage. If the middlings product could be efficiently cleaned in the flotation plant it would produce more than 4 t/h of high value kaolinite. The simplest way to measure the mass percentage loss on ignition at 1000oC. Kaolin has a theoretical maximum loss on ignition of 13.9%. This measurement is most commonly used in this paper.

Laboratory Trials

Because of the Dorfners extensive experience with kaolin flotation, limited laboratory flotation trials were conducted in order to determine the correct reagent suite and operating parameters for the new flotation plant expansion. The feed material that was tested had a head grade of 10.6% LOI (approx. 75% kaolinite) and was 100% - 40μm. The overall required concentrate grade was an LOI of 13.4% (96% kaolinite). All tests were conducted in a 3 litre Denver type laboratory flotation cell and a rougher cleaner circuit was tested as shown in Figure 3.

The feed material was conditioned at a high pulp density of 500 g/l for approximately four minutes with H2SO4 to reduce the pH to 2.5 (all clays showed alkaline pH) before flotation. Flotation reagents were also added at this point with Amine 3305 from Clariant was used as a collector and frother in dosages between 400 g/l and 600 g/l. The rougher concentrate was collected during the four minute bulk float, then transferred to another flotation cell, additional water was added and a cleaner float (re-floated) was performed for approximately three minutes. During conditioning the impeller speed was set at 900 rpm and increased to the generic 1300 rpm during flotation.






Effect of pH

The standard pH of tests conducted was set at 2.5 and established from prior flotation knowledge. Two additional tests were conducted at higher pH's in order to determine the effect it made on the flotatation performance.




Table 1 shows that there is a distinctive trend associated with the pH of the flotation pulp. As the pulp pH is increased, the selectivity of the float decreases resulting in a higher yield and decrease in concentrate grade. Although higher yields can be favourable, the final product grade of the concentrate at higher pH values was below the selection criteria of an LOI 13.4%.






Effect of conditioning time

Conditioning the feed at high pulp density enables the mechanical energy transferred to the particles to be increased. In addition to conditioning the material at high pulp density, the amount of time allowed for particle/reagent contact is essential for successful flotation. As shown in table 2, with a conditioning time of 1 minute, the desired grade is not achieved in the final concentrate and yield increases due to the lower selectivity of the float.

Effect of floatation pulp density

After high density conditioning the flotation pulp is watered down significantly to a floatable density. Previous experience dictated that a value of approximately 100g/l would ensure that the required grade was achieved. Table 3 below shows the effect seen when the flotation density is either too thick ot too thin. Both extremes result in lower grades in the final concentrate due to loss of selectivity of the float.




Effect of water quality

The majoity of laboratory tests were completed using tap water during flotation. Ue to the nature of amine flotation, the plant's water needs to be recycled and tests were conducted to confirm that there was no performance loss due to recycled water.


It can be seen that the final grade produced is not negatively affected by the water, however there is a slight reduction in yield.

The results from the laboratory flotation can be summarised as follows:

·         Maximum kaolin grade achievable was 13.5% LOI from a feed grade of approximately 10.6% LOI.

·         Kaolin recoveries of 85% to 90%.

·         Kaolin yields of 65% to 75% are achievable but dependant on the feed quality.

·         Laboratory tests show that the use of conventional flotaion technology would require a cleaner circuit to produce the required grade.

·         Low pulp densities, increased conditioning times and low pH environments would be required for the flotation performance to be satisfactoy.



Industrial Trials

Following the results obtained in the laboratory, an industrial size G-Cell (1.7 m in diameter) was used to rest the full middling stream. The low solids concentration (below 100g/l) required to produce a final grade product was treatable in this size og G-Cell without difficulty. Although pneumatic flotation has shown in the past that it produces a higher grade product, the target set by Dorfner was very stringent and so a froth washing system was installed by MMS. Due to the rotational movement of the froth in the G-Cell,a single spray bar can be used to get coverage over the entire froth area as well as ensure deep froth penetration without destroying the produced froth. The use of a froth washing system also resulted in a thinner froth being produced which would be beneficial for pumping of the froth to downstream processes.






Figure 4 shows some of the results obtained during the pilot plant trials with the single G-17 G-Cell. The feed to the cell varied from between 70 to 80 m3/hr and the density was kept below 100 g/l. The most promising results were obtained at densities as low as 50 g/l. This is unexpected as the lab results dictated that such a low density would result in a loss of selectivity. It is blieved that the advanced aeration system on the G-Cll reults in very good bubble particle contact even at the very low densities. A single pass through the one G-Cell was able to obtain the following results; 35% recovery of kaolinite at 13.3% LOI with a yield of 31.5%.

With the success of the laboratory flotation and the pilot plant proving that the IMHOFLOT G-Cell was able to achieve the final grade without the need for cleaning, the approval was given to invest in an IMHOFLOT flotation plant. To ensure that an economical recovery of above 85% was achieved, the plant would require 3 G-18 G-Cell (1.8 m in diameter) operating in series. This size of plant would be comfortably retrofitted into the old flotation plant building and the available space. Figure 5 gives a process flow diagram of the 3 stage flotation plant. Water is recycled in the plant from the final tailings by the use of a cyclon pack and vacuum drum filter, as well as from the concentrate via the thickener overflow. The process water tank is then topped up with fresh water as is required using a float valve. The conditioning time in the cascade is approximately 4 minutes as dictated by the laboratory trials. The cascade is designed with 3 compartments, of which the first two are open at the bottom and allows the pulp to be conditioned with flotation reagents at a high density. The third compartment is freed from the second via an overflow and process water is added to dilute the pulp before flotation.


 The concentrate produced is treated with a defrothing agent to aid the pumping and settling in the lamella style thickener where the thickened concentrate is neutralized using NaOH and pumped to a storage silo for further treartment and sale. The filter cake produced from tailings is removed via conveyor belt and stock piled.






The plant provided by MMS to Dorfner was a full turnkey installation. Included in the battery limits for the delivery was the electrical system, flotation cells, pumps, automation, control protocol and integration with the existing equipment into the control system.



Commissioning and Installation

The plant was commissioned successfully in June 2005 and achieved the desired results from the very first commissioning run. The full flotation plant is shown in Figure 6.




During the commissioning of the plant, a sample from each of the 3 G-Cells was taken to confirm the performance down the line of the flotation cells. The results obtained are presented in Table 5.

When these samples were taken, the feed grade to the flotation plant was significantly lower than is normally expected and resulted in low concentrate grades being produced. However, the results showed that each of the 3 G-Cells was able to produce a high grade product with good air flow rate control on the third cell.






The overall performance of the plant is shown in Figure 8. As the yield of the plant was increased, the recovery increased as expected, but the loss of grade at the higher end was lower than expected. The yield increased from approximately 67.2% up to 73.6% with corresponding grade decrease from an LOI of 13.5% to 13.1%.









Conclusions

The Imhoflot G-Cell plant was delivered, installed and commissioned within 3 months of the order being received from Dorfner. It was successfully commissioned without any major commissioning problems and was fully operational in July 2005. With the use of froth washing the 3 stage plant produced an acceptable concentrate without the need for further cleaning resulting in considerable cost savings. The residence time of the complete G-Cell installation is less than 120 seconds. This can be compared for this application of 8 minutes of conventional roughing time and a further 6 minutes in a required cleaning setion.

Dr. Imhof supplied his first pneumatic flotation plant in 1987. Since then he has designed and supplied over 110 cells treating a whole range of materials including copper sulphide and oxide ores, gold, coal, iron ores, slags, soil remediation and a range of industrial minerals. The development of centrifugal froth removal providing high performance separation with significantly reduced residence time, now offers further reductions in installation costs of flotation plants. The first two successful installations detailed here demonstrate the reliability of a flotation plant based on the G-Cell development.

_____________

Note: For more related readings Please go to the following link : Imhoflot Flotation Technology , for more related readings.

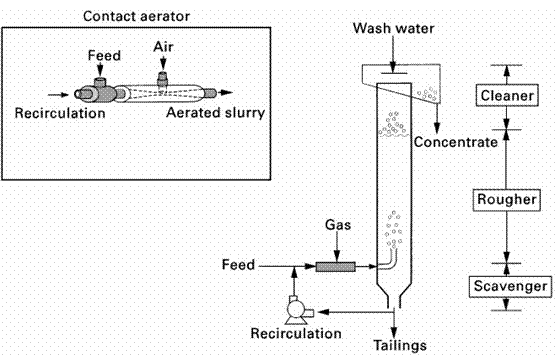

The schematic drawing shown below shows a modern flotation column featuring feed line aeration (insert) and partial recycle of tailings. The main thrust of a column in this configuration is its equivalence to a virtual flotation circuit with the capability of generating fine bubbles for fine particle flotation.
